Easy to use for oil screw dewatering screen MDS101

FOB Reference Price:Get Latest Price
$10,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Stainless Steel 304
Product name:
Sludge Dewatering Machine
Activated Sludge Dewatering,especially for oily sludge
Automatic Running
Electric components:
Schneider, Omron
Outlet sludge cake Moisture:
Inlet sludge solid content:
CE ISO9001
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden package with foam inside for sludge dewatering equipment
Lead Time :
Shipped in 20 days after payment
Product Description

Sludge Dewatering Machine Introduction

Multi-Disk Screw Press ( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

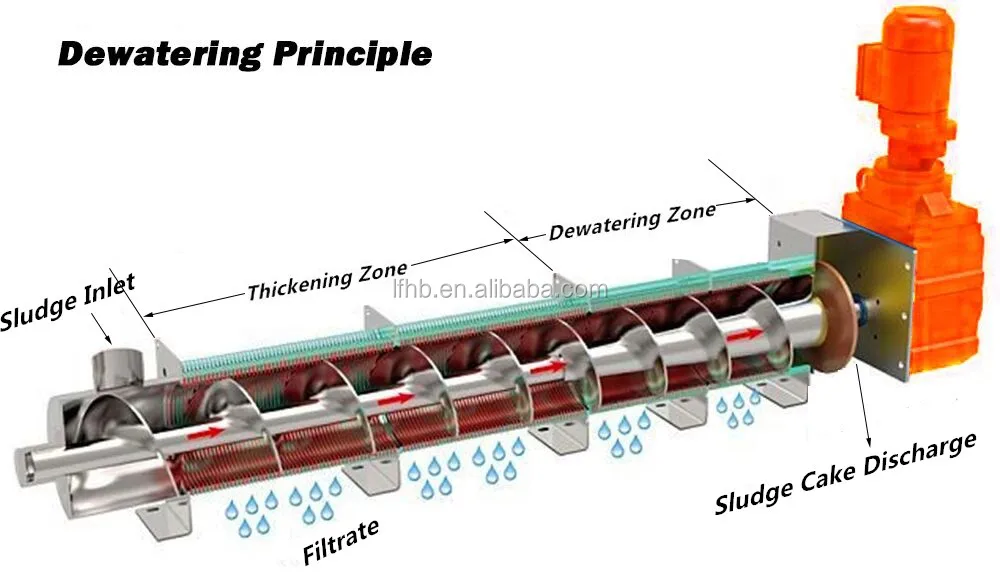

Sludge Dewatering Working Princple

The initial section of dewatering drum is the Thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gaps between the rings decrease at the end of dewatering drum, hence increasing its internal pressure. At the end, the End Plate further increases the pressure, so as to discharge dry sludge cake.

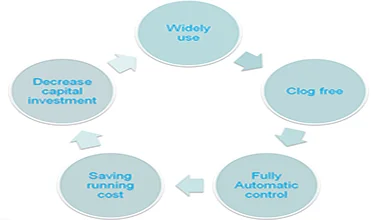

Technical Advantages

Sludge Dewatering Machine Advantages

1) Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l
2) Fixed and moving rings replace filter cloth, slelf-cleaning , clog-free, easy to handle oily sludge
3) Low running speed, low noise ,low power consumption, 1/8 of Belt press and 1/20 of Centrifuge
4)Less capital construction cost,excellent working performance
5) Fully automatic control, easy operation, simple maintenance

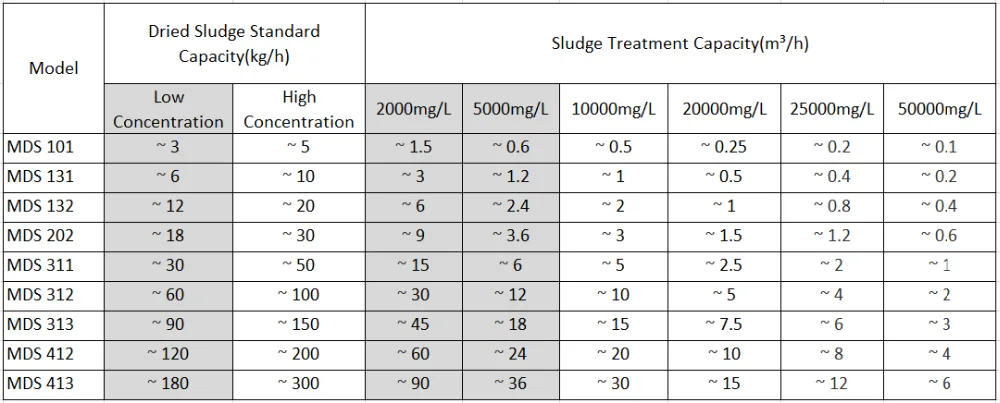

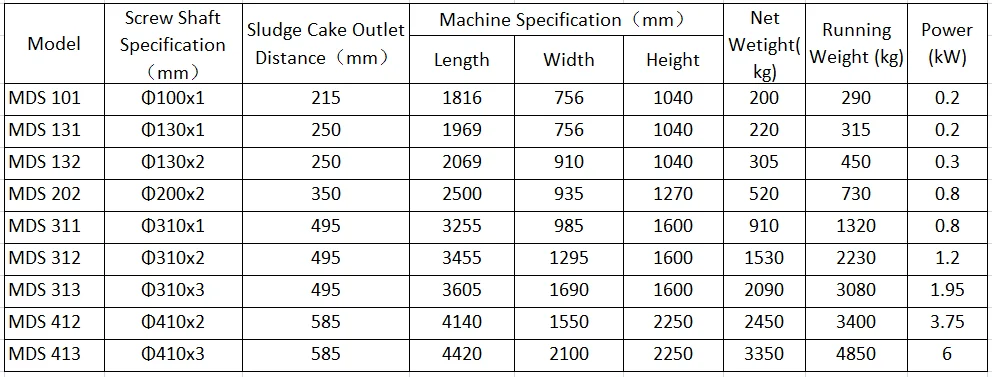

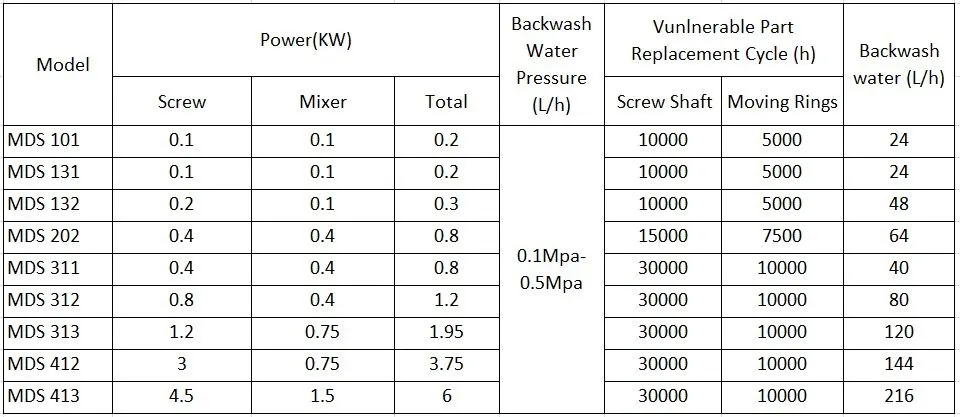

Specification & Mode

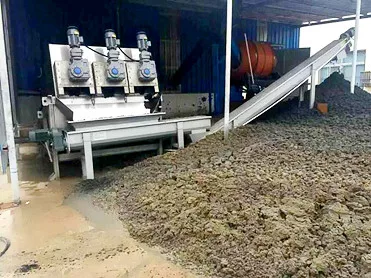

Case Study

Sludge Dewatering in Paper Making

Model:  MDS312                  Location:  Shandong,China
Sludge Type: chemically precipitated sludge
Sludge Concentration : 1.97%
Sludge Flow Rate : 7.0m3/h
Ds Throughput : 138kg-DS/h
Polymer Add Rate: 6g/kg DS
Cake Solid: 23%

 Capture Rate: 96%

Sludge Dewatering in Food Processing

Model:  MDS311                 Location:  Guangdong, China
Sludge Type: 70%chemical sludge+30% biosludge
Sludge Concentration : 1.40%
Sludge Flow Rate : 3.0m3/h
Ds Throughput : 42kg-DS/h
Polymer Add Rate: 8g/kg DS
Cake Solid: 18%

Capture Rate: >94%

Sludge Dewatering in BLue Algea

Model:  MDS412                       Location:  Jiangsu, China
Sludge Type: biosludge
Sludge Concentration : 1.10%
Sludge Flow Rate : 13.0m3/h
Ds Throughput : 143g/kg-DS/h
Polymer Add Rate: 8g/kg DS
Cake Solid: 14%

Capture Rate: >90%

Sludge Dewatering in Petrochemical Industry

Model:  MDS413                  Location:  Sinkiang
Sludge Type: 70%chemical sludge+30% biosludge
Sludge Concentration : 2.10%
Sludge Flow Rate : 18.3m3/h
Ds Throughput : 143g/kg-DS/h
Polymer Add Rate: 384g/kg DS
Cake Solid: 17%

Capture Rate: >90%

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Process optimization, filed test and design service etc.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Contact information

Snow Xia

Sales manger

Zhejiang Lifeng Enviromental Equipment Co.,Ltd.

Tel:+86-021-3159 6560

Email: snow(at)dewater123.com

Web: www.dewater123.com
Alibaba: https://lfhb.en.alibaba.com
